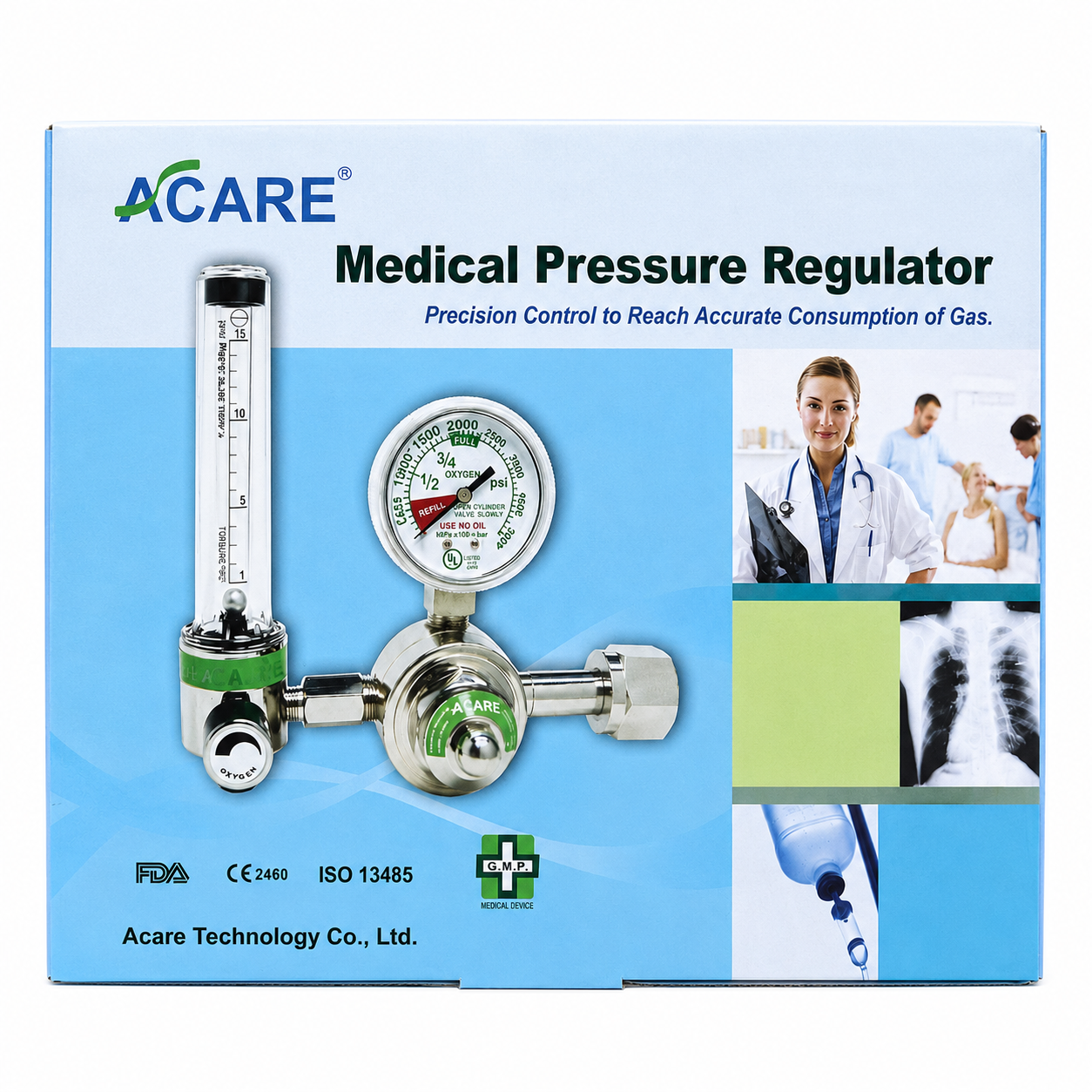

Medical Oxygen Cylinder Regulator With Flowmeter And Humidifier/Oxygen Flowmeter (Acare–Taiwan) Piston Type

Product Identification:

# Product Name: Oxygen Flowmeter
# Brand: Acare
# Origin: Taiwan
# Manufacturer: Acare Technology Co., Ltd., Taiwan
# Series: Piston Type

Features:

* Single-stage piston-type regulator structure

* Fixed 50 psi output pressure

* Adjustable oxygen flow from 0 to 15 LPM

* Flow-output accuracy within ±10%

* Clear and easy-to-read vertical flow tube

* Integrated cylinder-pressure gauge

* Durable chrome-plated brass construction

* Crack-resistant transparent polycarbonate flow tube

* Reusable humidifier bottle with marked water levels

* Manual oxygen flow-adjustment control

* Top-entry and side-entry versions available

* Compatible with several international oxygen-cylinder connections

* Designed for reliable operation and low maintenance

* Suitable for use with medical oxygen cylinders

Technical Specifications:

# Gas Service: Medical Oxygen

# Regulator Structure: Piston Type

# Regulator Stage: Single Stage

# Output Pressure: 50 psi fixed

# Flow Range: 0–15 LPM

# Flow Accuracy: Within ±10%

# Maximum Inlet Pressure: 3,500 psi / 240 bar

# Pressure Gauge: 2-inch cylinder-content pressure gauge

# Gauge Display Range: Approximately 0–4,000 psi, as shown in the product image

# Regulator Body Material: Pure brass with chrome-plated finish

# Flowmeter Body Material: Chrome-plated brass

# Flow Tube Material: Transparent, crack-resistant polycarbonate

# Flow Adjustment: Manual oxygen flow-control knob

# Standard Flowmeter Position: 90-degree arrangement

# Optional Flowmeter Position: 180-degree arrangement may be available

Common Applications:

* Hospitals and nursing wards

* Clinics and medical centres

* Emergency rooms

* Ambulances and patient-transport vehicles

* Home oxygen therapy under medical supervision

* Oxygen delivery through nasal cannulas

* Simple oxygen masks and non-rebreather masks

* Humidified low-flow oxygen therapy

Package Includes:

# 1Set×Oxygen Flowmeter And Humidifier In Hard Box
